ACI Marina Rovinj

Rovinj

Geolocation
45°4'29'' N
13°39'9'' E
Address
Šetalište Vijeća Europe 1
City
Rovinj
Country
Croatia

ACI Marina Rovinj is located in an attractive tourist area of Monte Mulini, near the Rovinj city center. The said space is characterized by a public park, the Rovinj waters overlooking the medieval town center and a rich tourist, sports and recreational facilities of the site – a promenade, a public beach and high category hotels.

The functioning of the marina takes place through two conceptual levels: a representative and a service level. The first one is the part the yachtsmen come into contact with (with a reception, restaurant/café-lounge bar, agencies and shops), and the part that interacts with the users of the public city spaces and tourist facilities (pedestrians on the promenade, Hotel Park guests etc.). The second one functions as a customer service area for the marina users.

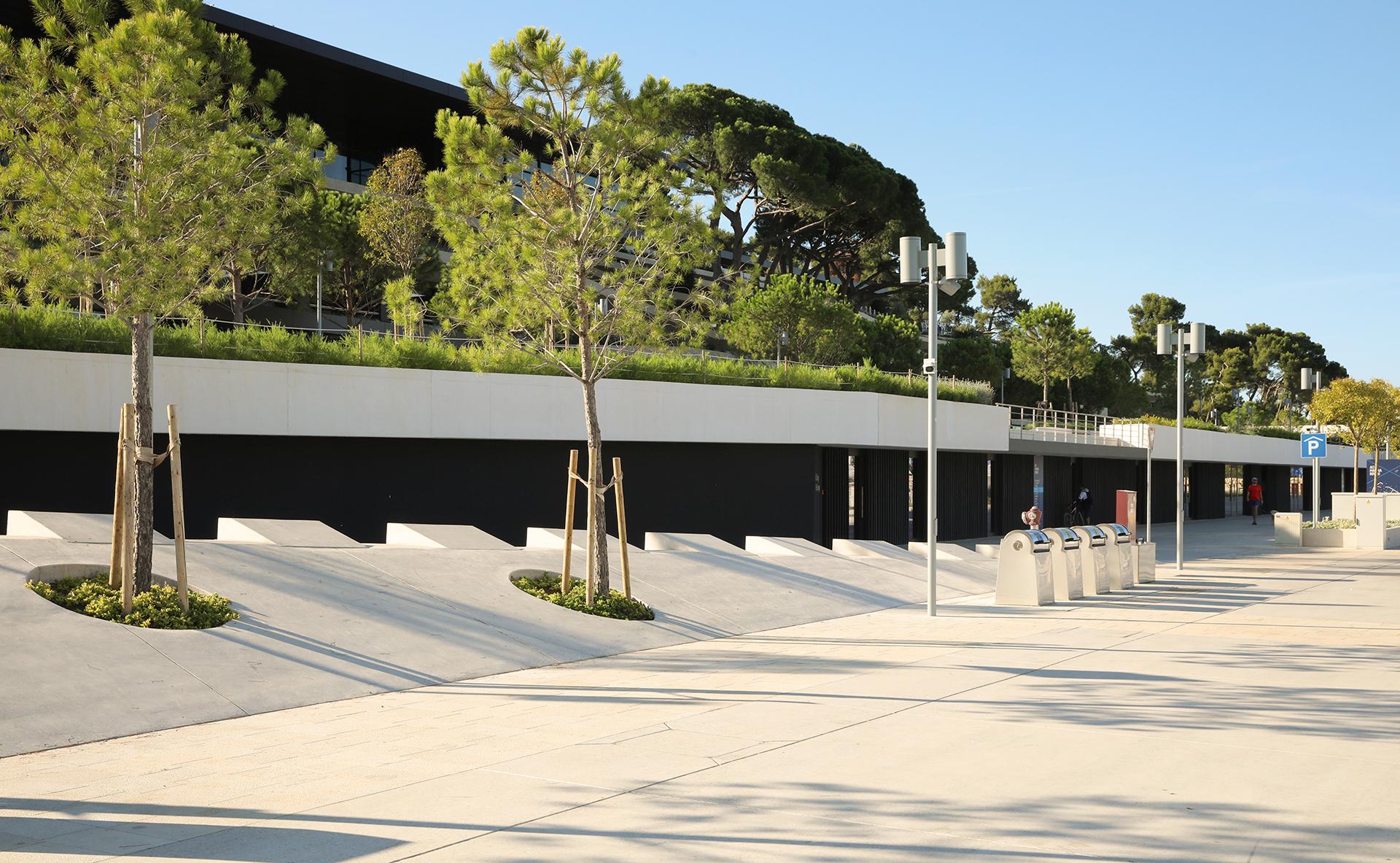

Via the promenade, pedestrians are directed to the shops and commercial contents, away from the service and technical spaces of the marina, and the yachtsmen are guided to nautical contents with a clear signage system. Incoming traffic from the city is discreetly lowered to the coast level where access for intervention and delivery vehicles is provided.

It is the site context that served as an inspiration for reflection over the redesign of the existing Marina facilities. 3LHD was in charge of the land part of the marina – the design and construction of the new building for functional services for boaters and the redesign of the roads, pedestrian areas and green landscape surfaces.
The new Marina building will have a Yacht club with a reception, office spaces and agencies, catering facilities (café-lounge bar, restaurant), commercial and service spaces (service facilities for sailors, storage, sanitary and technical premises). The project meets the requirements for a 5 anchor marina.

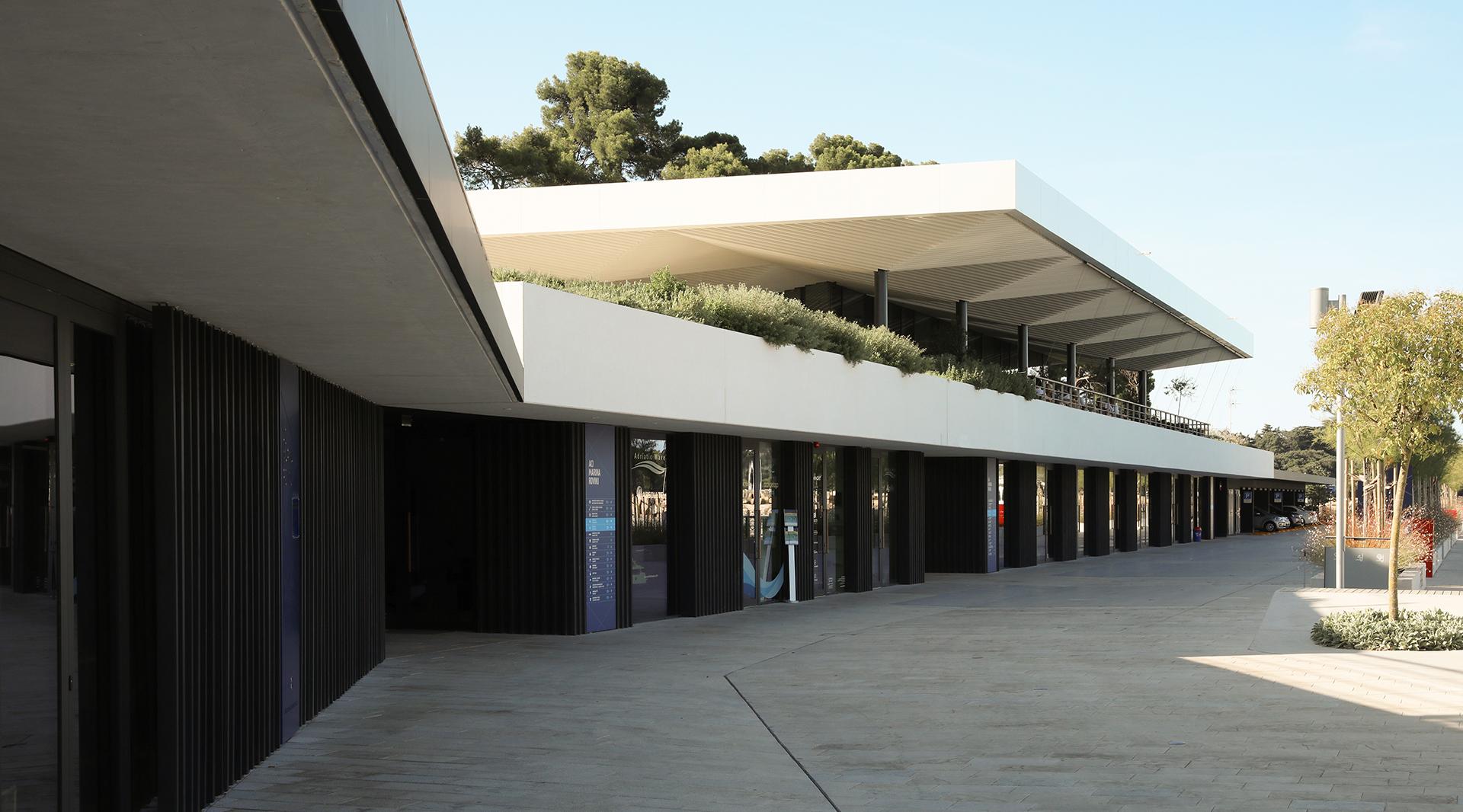

The marina building is designed as a unique volume inserted into the promenade tissue visible only with a façade oriented to the coast. An exception is the restaurant/café-lounge bar with a glass façade which is located on the roof of the building and acts as an extension of the promenade contents together with seating areas, green islands and urban attractions.

Fact Sheet

Project name

ACI Marina Rovinj

project number

242

program

public, hospitality

status

completed

project

2014 - 2016

Construction

2017 - 2019

Location

Croatia, Rovinj, Šetalište Vijeća Europe 1

Site area

16147 m²

Size

2959 m²

volume

11780 m³

Footprint

4307 m²

altitude

1.5 m

author

3LHD

client

ACI club

Project Team

Saša Begović, Marko Dabrović, Tatjana Grozdanić Begović, Silvije Novak, Koraljka Brebrić Kleončić, Deša Ucović, Tomislav Soldo, Maja Milojević, Davor Plavšić, Dragana Šimić, Nives Krsnik Rister, Mia Andrašević

Project team collaborators

Jan Ružić, Jure Živković

Landscape Design

Kreativni Krajobrazi - Kaja Šprljan Bušić, Ines Hrdalo

Building physics

AKFZ studio - Mateo Biluš

Specialist Design - Kitchen Technology

Dekode - Zoran Divjak

Structural Engineering

Radionica statike - Branko Galić

Traffic Planning Project

C5 Koncept - Boris Leović

Drainage and hydrant network infrastructure project - coastal area

GPZ - Duško Mičetić

Fire safety

Agenor Plus - Željko Omrčen

HVAC

Termotehnika Paun - Vladimir Paun

Elevators

Kone - Rok Pietri

Fire protection and safety at work project - land area

Inspekting - Maksim Carević

Bill of Quantities

Forel projekt - Lucija Ivas

Geodetic survey

Geoprojekt - Branko Manojlović

Visualizations

Jan Ružić, Mario Harni, Branimir Turčić

Construction site supervision

Investinženjerning

General Contractor

Pomgrad inženjering, Strabag
